Main Material: Medical grade PP,Medical grade PVC， Medical grade ABS

SIZE:TK-IV-01~TK-IV-32，TKIV-F01、TKIV-F02、TKIV-F03、TKIV-F04，TKIV-F05，TKIV-F09、TKIV-F10、TKIV-F11、TKIV-F12、TKIV-F15，TKIV-F13、TKIV-F14

Intended Use

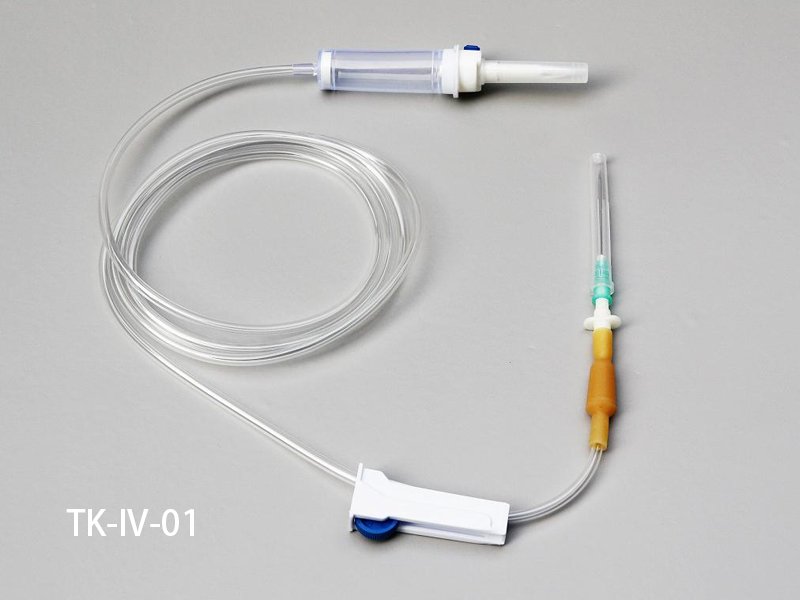

It is a device used to administer fluids from a container to a patient’s vascular system through a needle or catheter inserted into a vein.

Characteristic:

• For infusion bags and bottles
• 20 drops=1±0.1ml
• Flexible drip chamber
• Roller clamp
• Slip or lock adapter
• Latex/latex-free injection site
• For gravity use
• Sterile

Structure Properties Products

• Safety regulator: Adjust range is 30mm from zero to maximum,regulator is accurate and thick, undeformable.Safety infusion: The solution filter has a filtration rate more than 80% for micro material above 15um in solution.
• Excellent usability: Spike with safety handle that easily operate; transparent and flexible drip chamber that conveniently toobserve solution, easily filling and venting for alr; transparent tube that can distinguish between solution and air whenbubbles passing.
• Types: PVC infusion set, PVC infusion set without DEHP,TPE infusion set, such infusion sets with better safety in turn and can meet different needs.

Notes

Product Conformance

• Conform to ISO 8536-4,ISO 7864 and ISO 80369-7 etc.;
• In compliance with European Medical Device Regulation MDR 2017/745(EU);

Quality Assurance

• Manufacturing process is in compliance with ISO 13485 and ISO 9001 Quality System.
