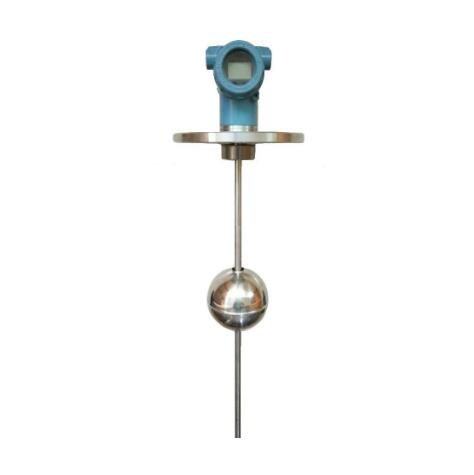

Overview of float level meter

Float level controller output 4~20mA standard current signal and III type electric instrument matching, can realize automatic detection, control and record of liquid level.

Liquid level transmitter is suitable for oil refining, chemical industry, paper making, food and pharmaceutical industries, but also for sewage treatment and all kinds of open or pressure vessel medium liquid level measurement, especially ideal for underground storage tank and high-rise water tank level measurement.

The liquid level transmitter is made of stainless steel or anticorrosive material, and has flameproof protection performance.

The characteristics of the float level meter

● Easy to install, simple structure

● Reliable performance

● Corrosion resistance, explosion-proof

Main technical indicators of float level meter

Measuring range: L: 0~6000mm, optional by user.

Output signal: 4~20mA DC

Accuracy: ±10mm

Medium density: ≥0.7g/cm3

Medium viscosity: ≤ 1.25ST (1St=10-4m2/S)

Operating temperature: -40 ~+60℃

Load impedance: 620 ω

Supply voltage: 24VDC

Outlet connector: internal thread M20×1.5

Connecting flange: HG20592-20635-97 DN150 PN1.6mpa, 2.5mpa, other flange standards such as GB, HGJ, ANSI, etc

Ordering instructions

Please provide the following data when ordering

● Model specifications

● Measuring range

● Density of measured medium

● Operating temperature

● Working pressure
