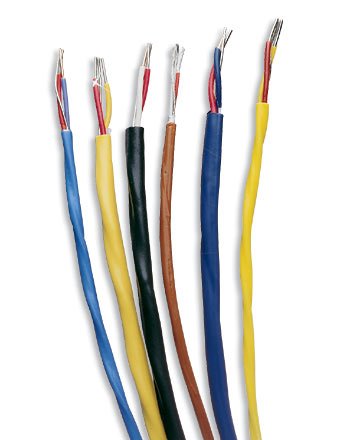

Multi-unit compensation wire is suitable for electric heating coupling compensation wire, used in electric power, metallurgy, petroleum, chemical, textile, and other factories and mines and scientific research departments in the temperature measurement and control system, the compensation cable is easy to lay, with moisture-proof fire resistance, high temperature resistance, aging resistance and other characteristics, shielding can prevent external interference.

Price of multi-strand compensation conductor

Refractory, temperature resistant type: -40℃~+250℃

Fire resistance, high temperature resistance: -40℃~+380℃

Common: -20 ° C to +100 ° C

Multi – strand compensation wire product characteristics

Rated temperature: -60℃ ~ +350℃

Standard: GB/T4989-94 equivalent iec584-3 “Thermocouple Part III – Compensation wire”

Shielding: tinned copper wire, silver copper wire, stainless steel wire

Insulator: teflon (fluorine plastic), silicone rubber, glass fiber

Compensation wire models are divided into KX, NX, KC, EX, JX, TX, SC and RC according to product types

A) Model * letters correspond to the indexing number of the thermocouple;

B) The letter “X” stands for extended compensation conductor

C) The letter “C” indicates the compensation type compensation conductor

D) The letter “H” stands for high temperature resistance

E) The letter “R” stands for multiple shares

F) The letter “P” stands for shielding

G) The letter “F” denotes teflon material

H) The letter “B” stands for fiberglass material

I) The letter “S” stands for precision grade compensation conductor

J) The letter “G” stands for compensating wire in general

Temperature range: -40℃ ~ +260℃ ~ 400℃ can be customized temperature 0℃ ~ 1000℃ compensation wire.

Note: Type SC compensation wire can be matched with type R indexing thermocouple
