I. Product Overview

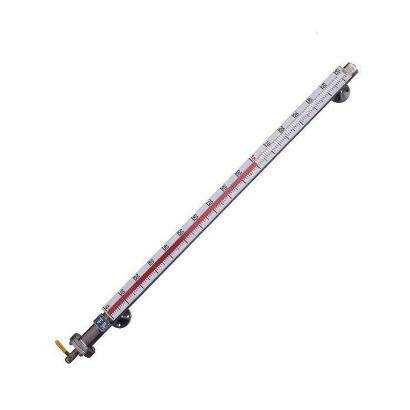

UHZ series side-mounted magnetic flip level gauge products can achieve high sealing, leakproof and safe and reliable measurement of liquid level under high temperature, high pressure, high viscosity, strong corrosion conditions, the whole process of measurement without blind area, eye-catching display, intuitive reading

Technical parameters:

1, installation mode: side mounted top mounted type

2, measurement medium: such as water, oil, other chemical solvents and liquid raw materials

3, material requirements: such as 304 stainless steel, 316L stainless steel, stainless steel lined with tetrafluorin,PP, PVC (if the user is not clear, after providing relevant parameters, we can choose by our technical staff)

4, measure the temperature of the medium: the different temperature determines the different choice of the material type of float and display panel. When the temperature is too low in winter, it is necessary to install potential heat or steam jacket for insulation, the level meter can measure the temperature of the medium -20℃~500℃.

5, working pressure: the size of the pressure determines the thickness of the main pipe and the different processing technology such as welding. The liquid level meter can measure the medium Z.i high pressure can reach 10MPa.

6, connection mode: top mounted magnetic flip plate level gauge series products are generally connected with DN80 or DN100 flange, side mounted magnetic flip plate level gauge adopts three kinds of connection: flange connection (such as DN25), clamp connection, thread connection.

7, measurement range:

1. The side mounting type is connected to the measuring vessel through the upper and lower vessels, so its measuring range is the distance between the centers of the two vessels, referred to as the center distance. 2. The top-mounted type is inserted into the container from the top, so its measurement range is the distance to be measured from the top to the bottom of the container.

8, far transmission and alarm signal: magnetic flip level meter can achieve far-transmission 4-20mA, 485 communication, Modbus protocol and switching signal, alarm function.

Two, the working principle of side mounted magnetic flip level meter

A new type of instrument for indicating liquid level by reversing the two-color sheet driven by magnetic steel in the float. The magnetic float in the main body of the magnetic flip level meter moves up and down with the level rise and fall, and at the same time drives the double-color sheet inside the main body indicator to flip. When there is a liquid level, it turns to red, and when there is no liquid level, it turns to white. The line between the red and white ribbons represents the level. There is a striking scale on the left side of the indicator.

Classification and application of magnetic plate level gauge

Three, side mounted magnetic flip level gauge main technical indicators:

1. Measuring range (mm) : measuring range: 300~18000mm

2, medium density (g/cm3) : 0.5 ~ 2

3, medium viscosity: ≤0.02 Pa.s

4, working temperature: -40 ~ 350

5, working pressure: ≤ 2.5mpa (common type)

≤10.0MPa (High pressure)

≤32.0MPa (Ultra high pressure)

≤ 2.5mpa (anti-corrosion)

6, the measurement accuracy (mm) : ≤±10

7, installation mode: side mounted magnetic flip level meter, top mounted type, bottom mounted type

8. Protection grade: IP65

9, explosion-proof grade: IB ⅱ CT4 (intrinsically safe), D ⅱ BT4 (flameproof)

10, transmission mode: 4 ~ 20mA or switching amount

11, interface flange: according to the national chemical industry department, machinery department and American standards, can be customized according to the needs of users.

Note: when the safety of the side-mounted magnetic flap level gauge is affected by the environment, the space position L1<300 should be clearly mentioned when ordering.
